Designed for a range of slurry applications
Size Range 50mm / 2″ – 600mm / 24″
Body Style Two Piece Body
Body Epoxy Coated SG Iron
Pressure Rating 150 psi / 1034kPa
Gate 316 SS
GET TO KNOW
The KS Series knife gate valve has been designed to provide reliable, zero leakage service for slurry applications.
Featuring a two-piece body and dual seating system, this versatile valve can be used for dirty water, slurries and carbon regeneration applications.
The KS Series features a dual seating system and is suitable for use in a range of slurry applications.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Fully enclosed valve does not discharge during operation.
Self-cleaning design provides zero leakage sealing.
Scrapers keep the gate clean and protect the gate packing.
Seat is mechanically locked preventing distortion during valve operation.
Available in a wide range of materials.
Gate is fully guided to eliminate gate displacement during operation.

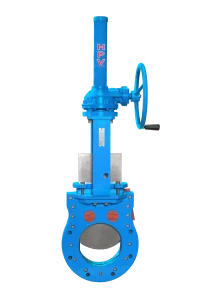

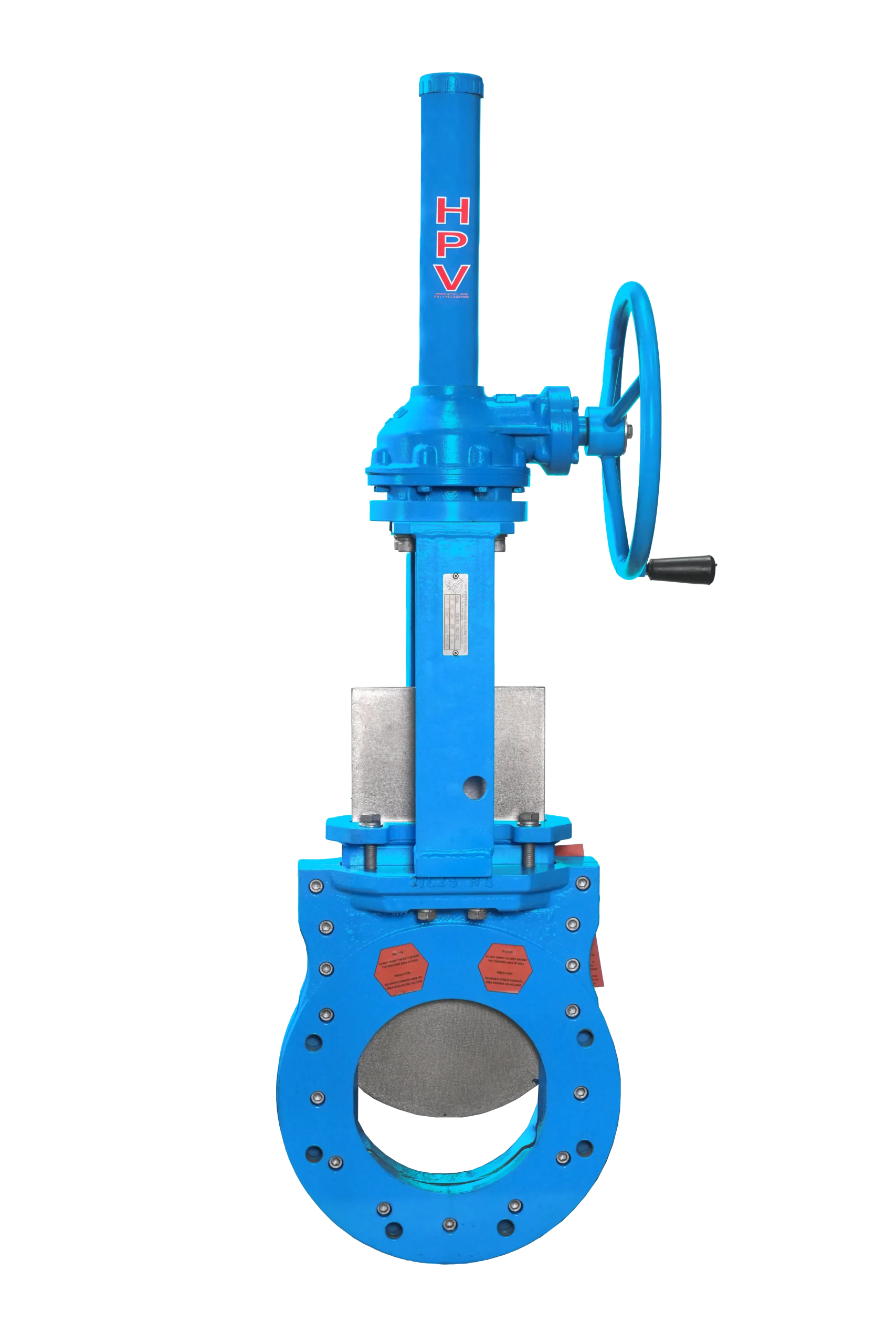

Actuators including Pneumatic, Electrical, Hydraulic, Manual and Spring Return. Position Sensors, Hand Valves, Filter Regulators and Silencers are also available. As well as Gear Boxes. Shown in image with Hand Wheel actuation.
Size
50mm/2″ – 600mm/24″
Media Temperature
70°C / 158°F
Material
Epoxy Coated SG Iron
Standards
Design (MSS SP-81), Testing (MSS SP-61), Face-to-Face (MSS SP-81)
Pressure Range
2″ – 24″ – 150 psi/1034 kPa
Actuator Options
Handwheel, Bevel Gearbox, DA Pneumatic Cylinder, SA Pneumatic Cylinder, Hydraulic Cylinder, Electric
Body Style
Two Piece Body
Drilling Patterns
ASMEB16.5 #150, AS 2129 Table D, AS 2129 Table E
Drilling Type
Lugged, Wafer
Gate Options
316 SS, 304 SS, 2205 Duplex, 2507 Duplex, Hastelloy C22, Hastelloy C726
